LED Emergency driver

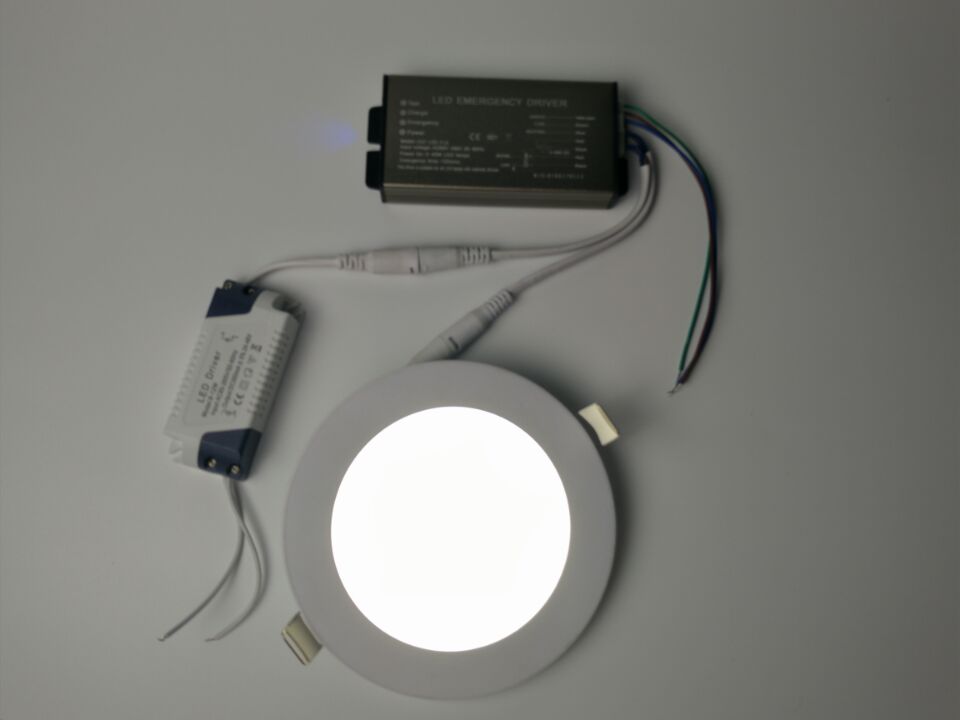

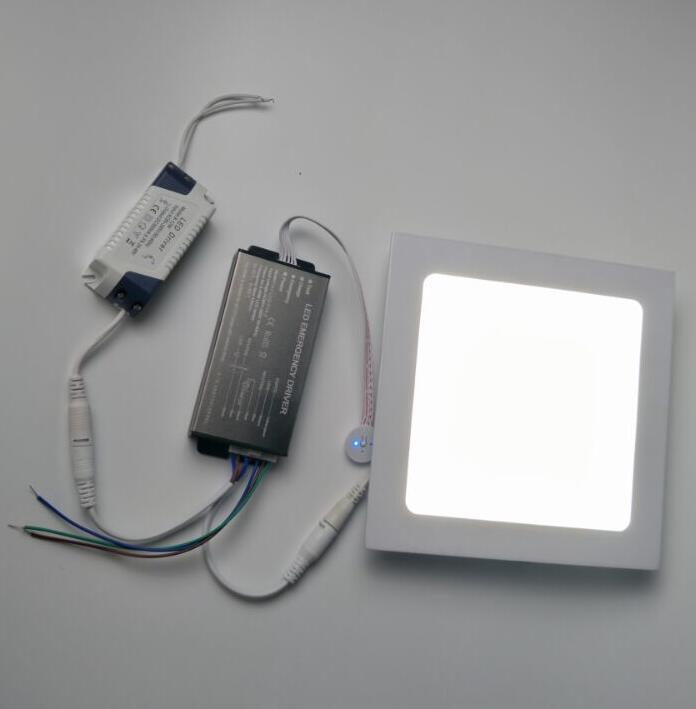

LED emergency is suitable for all kinds of LED lights power 3-60W LED lamps with external driver. such as panel lights, downlights etc. There will be more than 120 mins emergency power supply during power outages.. it is suitable for converting existing light fittings to emergency mode.
Product Details

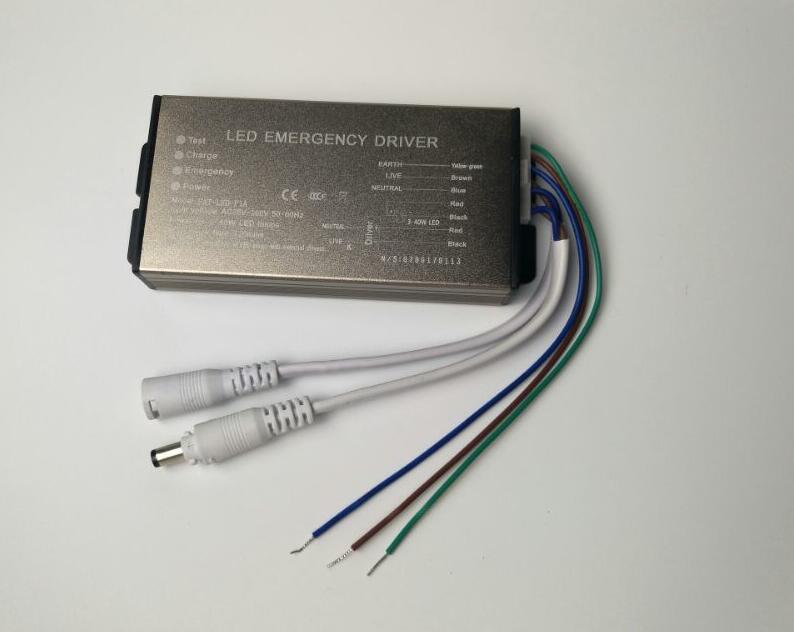

LED Emergency driver parameter
Model: FAT-LED-F1A
Material:ABS+Aluminum
Power: 3-60W
size:110*55*21mm
Battery:li-ion 18650 3.7V 2600mAH
Input voltage:85-265V
Emergency Luminous flux 45%
Emergency time:120min
Certificate:CE Rohs

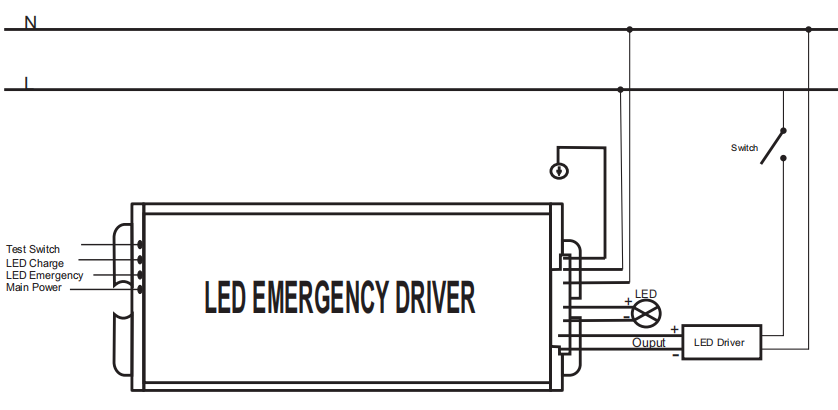

wiring diagram
wiring diagram
Product Features
3-60W Emergency kit for led light
IP30 protection level.
Applicable to LED panel light, Downlight, flat lamp and other LED lamps.
Voltage protection: wide voltage input AC85V-265V
Overload protection: power over rated power 20% delay protection.
Overload protection: timely protection when power exceeds 50% of rated power.
Short circuit protection and no loading protection
High efficiency and low temperature extend lifespan ( > 50000 Hours).
External test button and three-color LED indicator
Battery: High capacity lithium ion battery with overcharge and over discharge protection.
Battery Built-in
High temperature resistant batteries
18650 3.7V Lithium-ion battery pack
Battery capacity is optional according to emergency time
Simple plug-in connection
Grouped balanced protection
