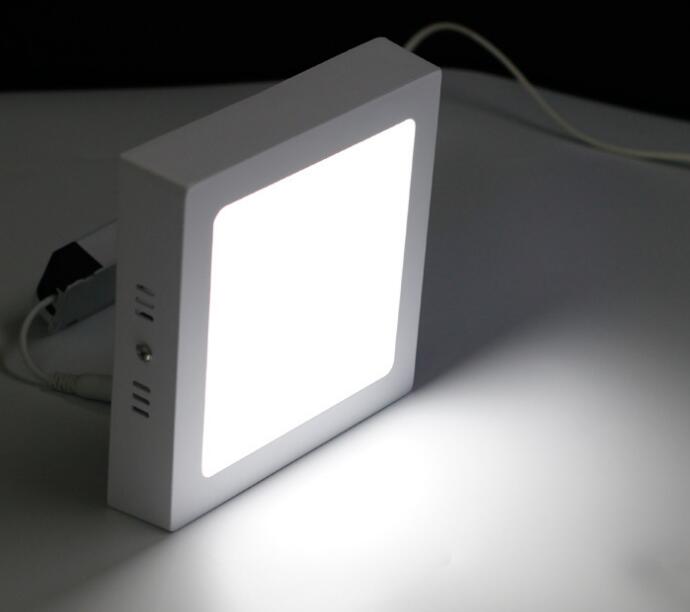

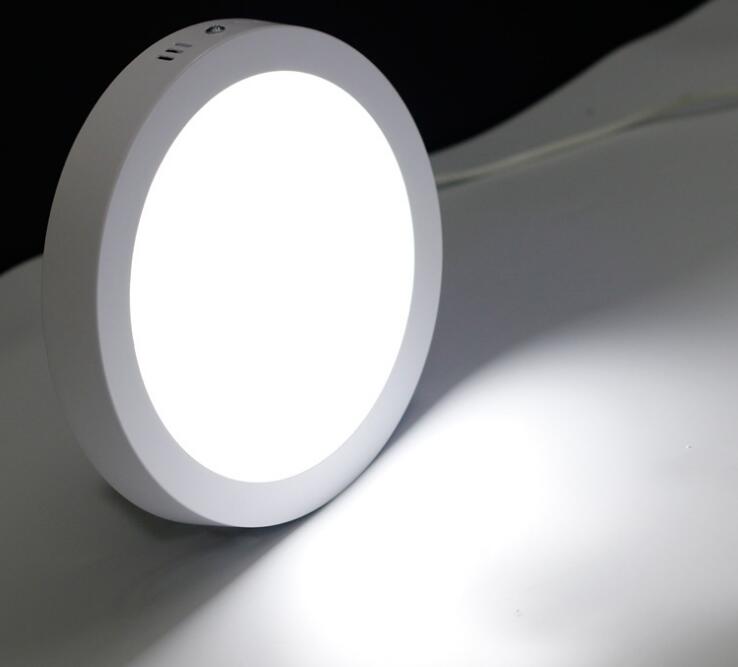

12W Surface mounted panel light
12W round and square surface mounted panel light ,can be mounted on the ceiling directly, no need open a hole on the wall and ceiling.Saving 90% of the energy compared to CFL, incandescent and halogen light, life-span over 50,000 hours, Reduce hassle of frequently replacing ceiling lights in high ceiling.
|
No. |
Specifications |
Details |
|
1 |
LED type |
SMD2835 |
|
2 |
Wattage |
6w/12w/18w/24w |
|
3 |
Voltage |
AC85-265v |
|
4 |
Frequency |
50-60Hz |
|
5 |
Lumens efficiency |
>80lm/W |
|
6 |
Size |
6w Ø120*30mm;12W Ø170*30mm;18wØ220*30mm;Ø300*30mm |
|
7 |
Beam Angle |
120° |
|
8 |
Color Temperature |
3000~3500k ;4000~4500K;6000~ 6500K |
|
9 |
Color Rendering Index |
>80 |
|
10 |
Life Span |
50000hrs |
|
11 |
Operating Temperature |
-20°C~55°C |
|
12 |
Warranty |
2 years/3 years |
|
13 |
Lumen efficiency |
>80lm/w |
| 14 | Shape | Round and Square |
|
15 |
Material |
PS+Aluminum |
|
16 |
CRI |
>80 |
1. PS+Aluminum material

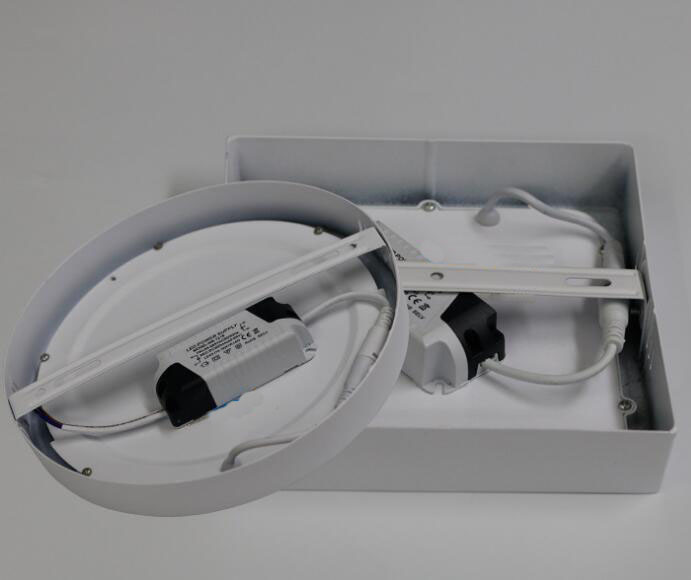

2. IC constant current and isolated driver
3. Energy saving, environmental
4. More than 80% light transmittance
5. Ventilation design, high efficient heat dissipation
6. Easy to install and use
7. CE and RoHS approved
Reliability of Round/square surface mounted LED panel light
1. 2 Years warranty or 3 years warranty.
2. as long as 12 hours aging test with automatic switching before each shipment.
3. 100% vibratility test will make sure the fastness of the assembling.
4. 100% resist voltage test of AC85-265v makes sure compatible for both 110 and 220v.
5. -40°C to 50°C extreme environment compliant.
